Dough Equipment

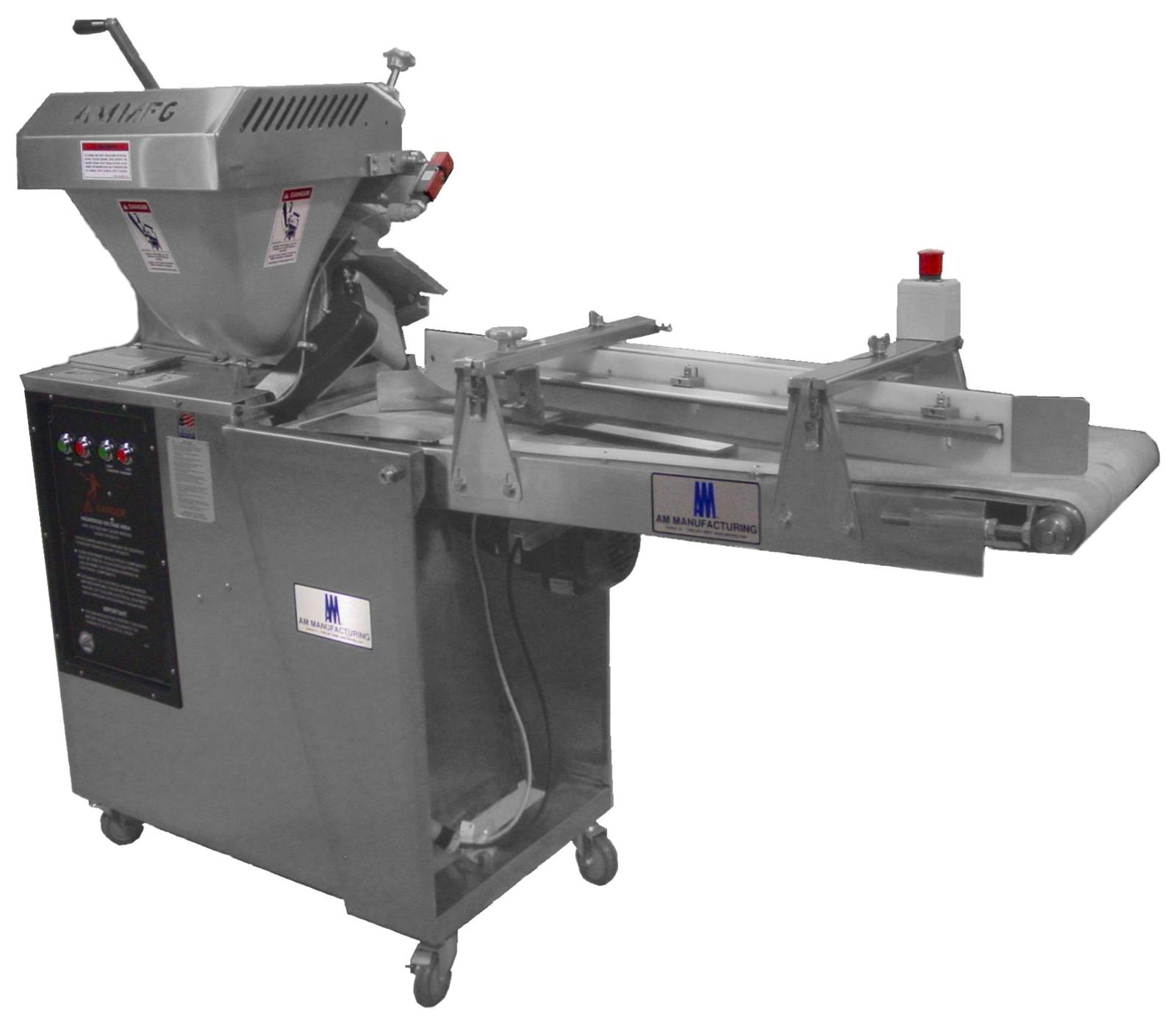

MODEL: S402, COMBINATION DOUGH DIVIDER / ROUNDER

The Atwood Scale O Matic is a single pocket combination dough divider / conveyor rounder that will accurately scale and divide dough over a wide variety of bakery products.

FEATURES

  • Precise scaling and dividing from one to 32 ounces
  • Production rate of approximately 33 pieces per minute
  • Accurate weight changes with the turn of a crank
  • Standard 75 lb. dough hopper
  • Fully adjustable rounder bar
  • One person operation
  • Portable. Designed with lockable, swivel casters
  • All stainless-steel cabinet
  • Adjustable conveyor folds up for storage

OPTIONAL ITEMS

  • Larger 125 lb. hopper capacity

SPECIFICATIONS

  • Length: 83” / 208 cm
  • Width: 24” / 61 cm
  • Height: 58” / 147 cm
  • Shipping Weight: 1100 lbs./ 410 kg
  • Measuring Cups: Micro (1 to 2 oz / 28 to 56 g)
  • Measuring Cups: Small (2 to 4 oz / 56 to 112 g)
  • Measuring Cups: Medium (4 to 10 oz / 112 to 280 g)
  • Measuring Cups: Large (10 to 32 oz / 280 to 896 g)

ELECTRICAL REQUIREMENTS

  • Standard machine: 120 volts /single phase / 60 hertz, 15 amps
  • 208 or 240 volts / single or three phase is available. Contact factory for additional price
  • Overseas voltages / CE requirements are available
  • UL Approved
  • Line cord and plug supplied, as standard
