Dough Equipment

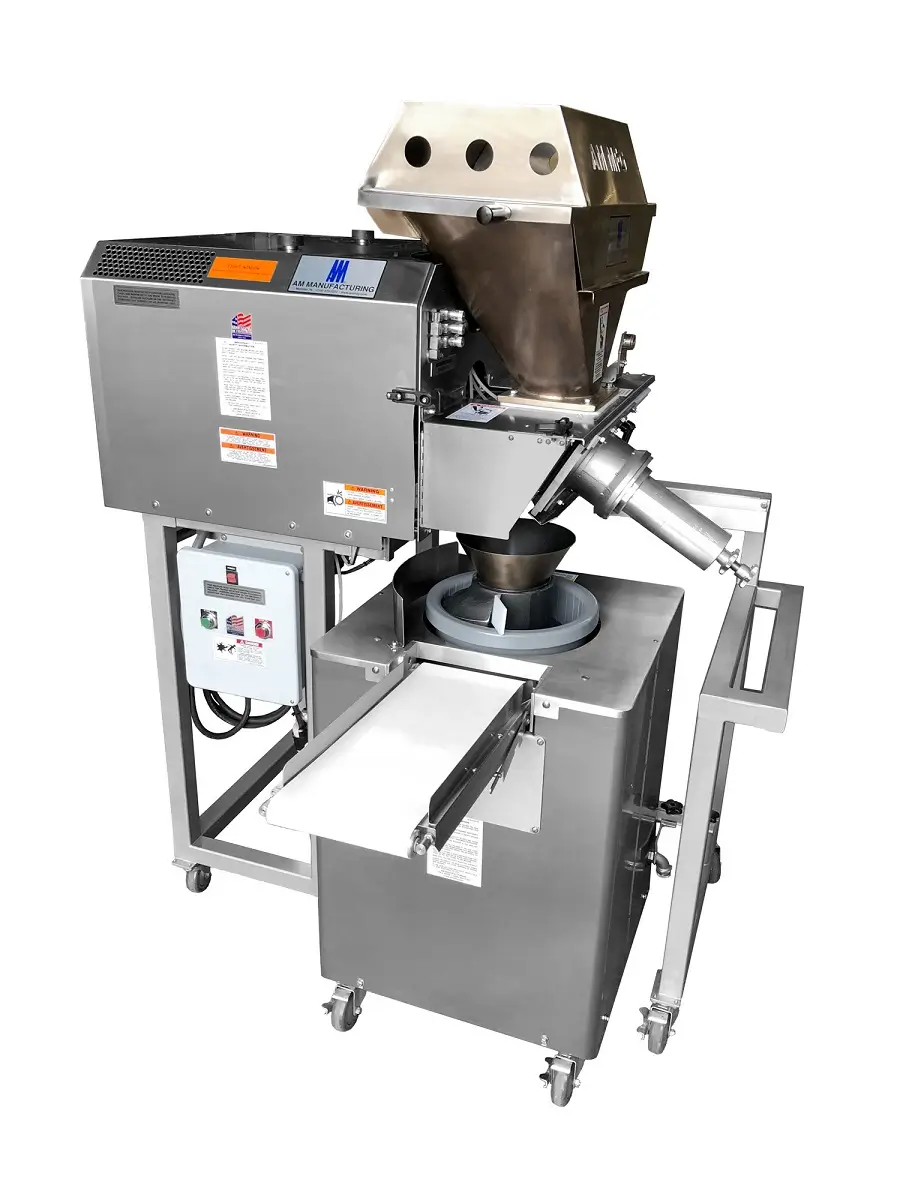

S301, COMBINATION DOUGH DIVIDER / ROUNDER

The Atwood Scale O Matic is a single pocket combination dough divider / rounder that will accurately scale and divide dough over a broad range of sizes, and then produce a round of unequaled quality.

FEATURES

  • Two separate machines. Divider and rounder can be used separately.
  • Precise scaling and dividing from one to 32 ounces
  • Production rate of approximately 33 pieces per minute
  • Accurate weight changes with the turn of a crank
  • Standard 75 lb. dough hopper
  • One person operation
  • Portable. Designed with lockable, swivel casters for both divider and rounder
  • All stainless-steel cabinet
  • Divider can be ordered separately to compliment an existing AM model R900 rounder
  • Easy-to-clean. No bending required

OPTIONAL ITEMS

  • Larger 125 lb. hopper capacity
  • Extended length conveyor belt (39” long)

SPECIFICATIONS

  • Length: 58” / 147 cm
  • Width: 57” / 145 cm
  • Height: 69” / 175.26 cm
  • Shipping Weights: 1376 lbs. (2 separate crates)
  • Measuring Cups: Micro (1 to 2 oz / 28 to 56 g)
  • Measuring Cups: Small (2 to 4 oz / 56 to 112 g)
  • Measuring Cups: Medium (4 to 10 oz / 112 to 280 g)
  • Measuring Cups: Large (10 to 32 oz / 280 to 896 g)

ELECTRICAL REQUIREMENTS

  • Standard machine: 120 volts /single phase / 60 hertz, 15 amps
  • 208 or 240 volts / single or three phase is available. Contact factory for additional price
  • Overseas voltages / CE requirements are available
  • UL Approved
  • Line cord and plug supplied, as standard
