Bagel Equipment

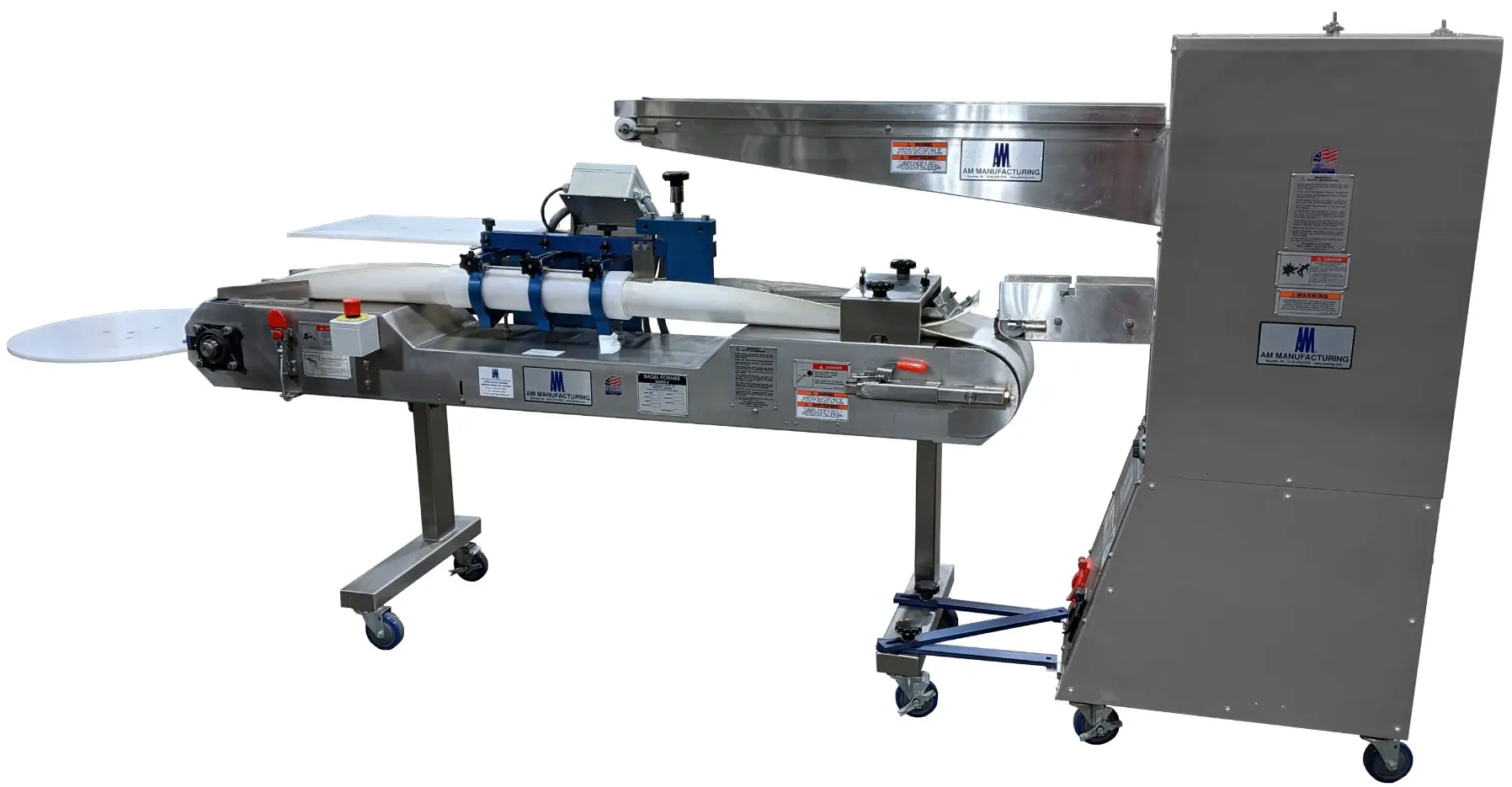

RK2200, COMBINATION SINGLE BANK ROTATING KNIFE DOUGH DIVIDER / BAGEL FORMER

AM Manufacturing, the company that pioneered machinery for the bagel industry, is proud to introduce its model RK2200 combination knife divider / bagel former. Possessing a scaling range of one to six ounces, this unit enables anyone to accurately divide dough and form up to 4800 bagels per hour (depending on size). Easy clean-up and maintenance are only two of the many outstanding features of this machine. Fully made in the USA and designed with rugged reliability in mind.

FEATURES

  • Large 4 1/2″ / 11.25 cm wide dough feed conveyor
  • Gentle Teflon coated, stainless-steel knife cutting action
  • Precision lockable, solid-state speed controls
  • Easy clean-up and maintenance
  • Simple weight and speed adjustments
  • One person operation
  • Portable. Designed with lockable, swivel casters
  • All stainless-steel cabinet
  • Direct drive 24″ diameter rotary catch table
  • No heat transfer to dough
  • Cantilevered leg design for quick belt changes
  • Self cleaning belt scraper

SPECIFICATIONS

  • Length: 133″
  • Width: 28″
  • Height: 66″
  • Shipping Weight: 1000 lbs.
  • Available Set-Ups:

6″cocktail bagel (1 to 1.5 oz)
7″ mini bagel (1.5 to 2 oz)
8″ forming bagel (2 to 3 oz)
9″ standard bagel (3 to 4 oz)
10″ bull bagel (4 to 5 oz)
11″ maxi bagel (5 to 6 oz)

ELECTRICAL REQUIREMENTS

  • 208 or 240 volts / three phase / 60 hertz
  • Overseas voltages are available
  • UL listing applies to the control panel only
  • ETL listing applies to the entire machine
